AN-2000 COMPUTERIZED ANEMOMETRY SYSTEM

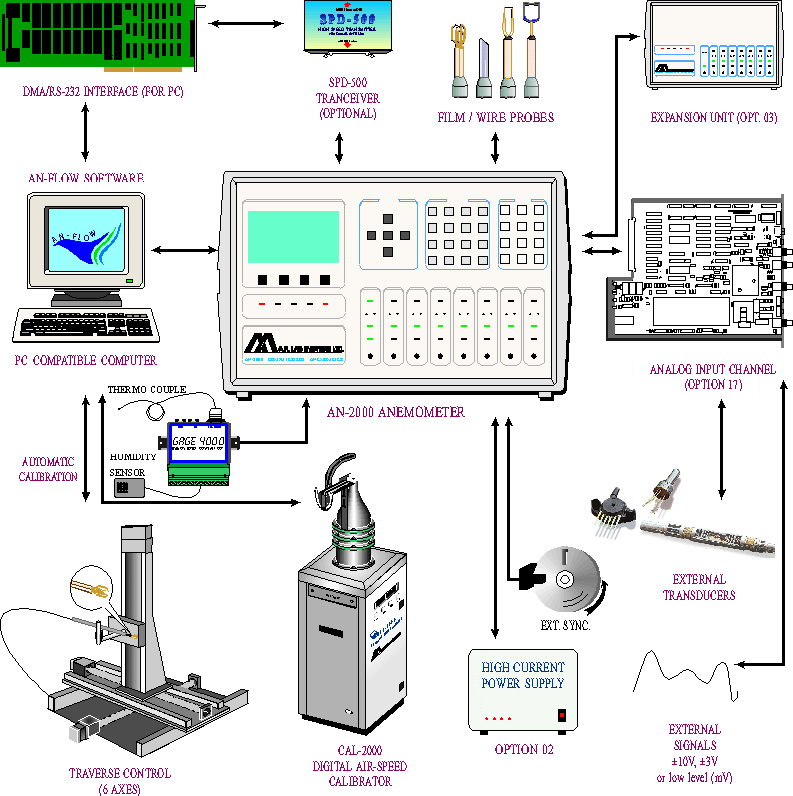

SYSTEM CONFIGURATION
The AN-2000 can be used with any type of Film / Wire probe, with up to eight channels in the mainframe, and eight additional channels in an expansion chassis. Channel types may be CCA/CTA or Analog input channels. The DMA/RS-232 card interfaces between the AN-2000 and any of the 486/PENTIUM family of computers. A high current power supply unit may be added to boost probe current (recommended for measurement in water). All hot-wire sensors may be calibrated automatically using the CAL-2000 Digital Air Speed Calibrator.
The AN-2000 supports a wide variety of external transducers. In addition, its PC software is able to control Traverse systems of 6 axes and sample data to the hard disk while moving the Traverse unit.
|
