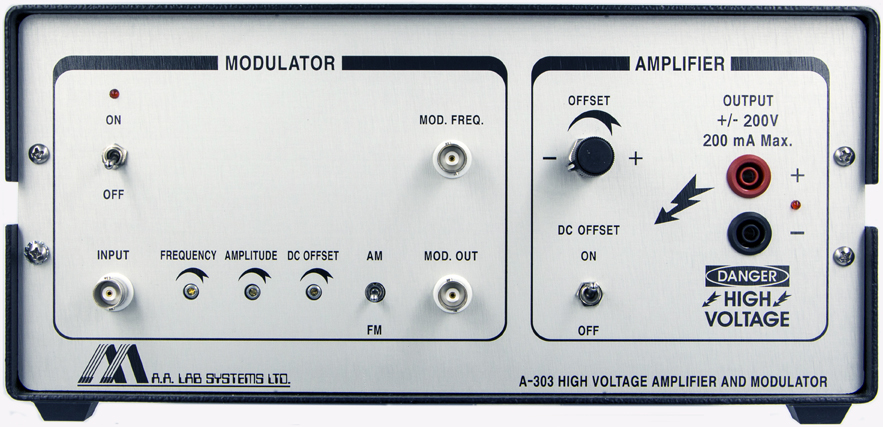

A-303 High Voltage Amplifier/ Piezo Driver and Modulator

The A-303 piezo Driver/Piezo Amplifier is a high Voltage, high speed Piezo Driver /
Linear Amplifier combined with a wide band AM/FM modulator.

It was especially designed as a Linear Amplifier / Driver for PIEZO Electric Actuators (
also known as "Piezo Amplifier"), stacks,piezo sheets, bimorph elements and other devices. It may be also used as a general purpose High Voltage amplifier for Medical applications (for example, as electode driver for Neurology).

The Piezo Driver / Piezo Amplifier is based on a high voltage, high frequency and high current MOSFET amplifier which is capable of driving up to ±200V (400V ptp) at ±200mA at frequencies from DC to 450 kHz.
By connecting 2 amplifiers in parallel or in series, the output voltage and current may be doubled to 800Vptp @ 200mA or 400Vptp @ 400mA.

The amplifier section is very stable and has a low noise output and a very low electrical noise - Compare Our Specifications!

3
The built-in modulator (AM or FM) enables the user to modulate the carrier frequency (adjusted on the front panel) by any input signal at the range of ±10V. The modulator can be turned off and bypassed using the ON/OFF switch on the left side.

This High Slew Rate Amplifier / Driver can be used for Various applications requesting high Slew Rate, High Voltage and fast response as:
Plasma Driver and Plasma Actuation, driver for piezo manipulator, Optical Switching devices, closed loop feedback systems, vibration control, structural damping analysis, Flow actuation and control etc.


Competitive Price!


Features:


1 High frequency amplifier - DC-1.2 MHz optional.AM modulation

1 Very Low Electrical Noise.

1 Low Distortion

1 No Audible Noise-you may hear your experiment.

1 High Slew rate-up to 400 Volt/microsecond.

1 Input protection-High Voltage, On/Off.

1 Output protection - Short-circuit, Power loss,Impedance.


1Built in Modulator: FM modulation

Amplitude(AM) or Frequency(FM) modulation

High Frequency - up to 100 kHz.


Low distortion

Adjustable frequency, Gain, Offset

The modulator may be turned off and bypassed if not in use
(only amplifier section would work).

Amplitude and Frequency modulation

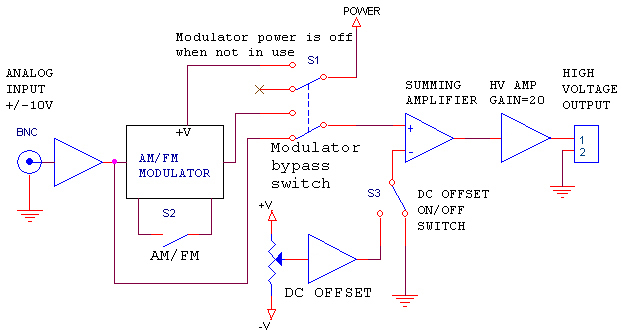

Block Diagram

Block Diagram


Specifications
:

A-303 Piezo Amplifier and Modulator


*Sync output provides a square wave in the same phase and frequency of the modulator output
(for synchronization and frequency measurement).

*The unit is self cooled - no fan or noisy parts.

Amplifier section:
Maximum Input Voltage
± 12 V
Maximum Output Voltage
± 200 V ptp
Maximum Current
± 200 mA
Bandwidth
















Into 1 K2 resistive load
DC to 450 kHz (-3 dB) (DC to 1.2 MHz-optional)
Into Capacitive load :
DC to 250 kHz (- 3 dB) (1 nF)
DC to 25 kHz (- 3 dB) (10 nF)
DC to 2.5 kHz (- 3 dB) (0.1 µF)
DC to 250 Hz (-3 dB) (1 µF)
DC to 25 Hz (-3 dB) (10 µF)
Output Power
40 Watt maximum
DC Gain
20 (up to 50 optional)
Coupling
Input & Output: Direct DC Coupling
DC Offset
Adjustable to ± 160 Volts (RTO)+ On/Off Switch
Input Impedance
10 K2
Slew Rate
350V/ µSec (1000V/µSec optional)
Output Impedance
4 2
Output Noise (input shorted, 350 KHz. Bandwidth)
5 mV PTP max. (1 mV RMS max.)
Variable Gain Option:
0-10X or 0 - 20X or 0-40X available.
Please consult the factory regarding that option.
Modulator Section:
Center Frequency
1 - 100 kHz adjustable
Modulation
Amplitude (AM) or Frequency (FM)
Waveform
Sine Wave
Distortion
0.05 % maximum
Modulation Input F.S.
± 10 V
Modulation Input Impedance
10 K2
Sync Output
1 V ptp, AC coupled,1 K2 Impedance
Amplitude Adjustment
0.5 V ptp to 20 V ptp
Offset Adjustment
± 10 V or 0 V fixed
Modulator output Impedance
100 2

The modulator may be turned off
when not in use!

AC Input
Line Input Voltage
110/120 V, 60 Hz or 220/230 V , 50 Hz
Line Input Current
1.3 A peak
Options:
01- High Slew Rate 1000V/µSec
02-Higher Gain Up to 50
03-Bandwidth DC-1.2 MHz.
04-Variable Gain 0-10X or 0 - 20X - No Charge.
5

Typical Noise2

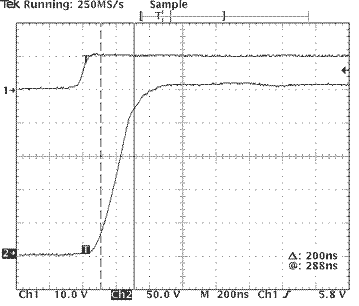

Slew Rate option

10V Step @ input

250V Step @ output

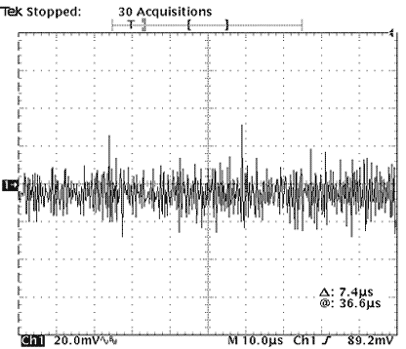

Output Noise - 1.2 MHz. Bandwidth option

5MHz B.W. Limit

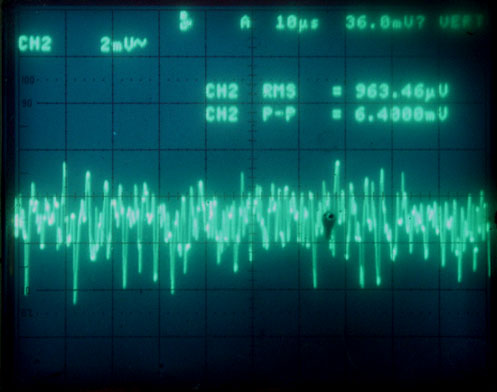

The Standard amplifier has very low noise.

Noise level @ 350 KHz. BW, input shorted

-->

display set @ 2 mV/div. 10uS/div.

Total noise is less than 1mV RMS !


Typical Noise


Applications:
2 amplifiers can be connected in series or in parallel in order to double the Output Voltage or Output Current.

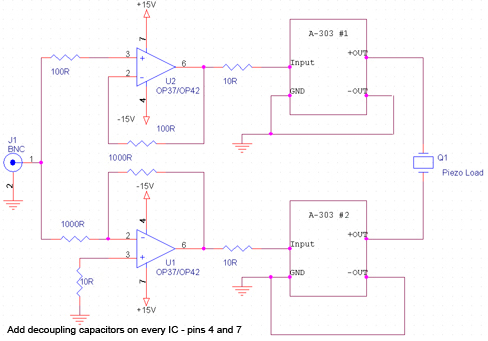

Series connection (+/- 400V into a floating load = 800V ptp).

Series Connection

Please note that both amplifiers must be floating (i.e. be careful not to ground them via an oscilloscope etc.)
It is also possible to double or tripple the output voltage by using a special transformer. Using a transformer is possible only at
high frequency (over 10 KHz.) and it requires more components to be added for balancing and proper termination of the load.

Parallel connection is done by adding resistors at the input and at the output. Please consult the factory for parallel connection.

Download Datasheet Download PDF file

Calulating the estimated current needed to drive your load:

In order to purchase the right amplifier to drive your load, you must calulate the peak current needed.

For Capacitive load:

Click Here
for current
calculator


Ipeak(A) = 2 π F C Vpeak (for a Sine Wave)

Ipeak(A) = 4 F C Vpeak (for a triangular wave)

Ipeak(A) = C dV / dt (for a square wave or sharp rise time)


For Resistive Load:
  I = Vpeak/R
where R is the resistance of your load in Ohms.

The current, Voltage and Frequency must be less or equal to the amplifier's specifications.

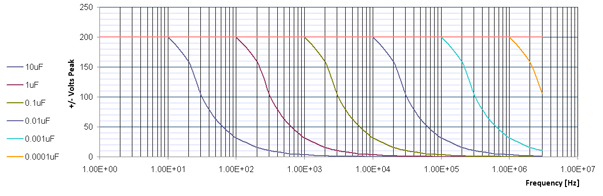

A-303 Frequency Response:

A303 Frequency response

This amplifier is NOT SUITABLE for driving pure inductive loads
(i.e. speakers, solenoides, electromagnets etc.)

You must connect your load with thick wires to minimize inductance (like speaker wires). Coaxial cable is not recommended for cables over 2m (6.5 Ft.) because the capacitance of the cable (15-50 pF/Ft) will load your amplifier at high frequencies.

Example:
The active impedance of a capacitive load is given by the equation:
Z=1/(2*Pi*F*C) where Pi=3.1415, C in Farads, F in Hz.The user must check that under the peak operation Voltage, at maximum frequency, the current will not exceed 200mA (0.2A).
Example:
Operating Voltage is +/-150V, Maximum Frequency=10KHz. Load is 10nF.
Z=1/(2*3.1415*10,000*10EE-9) =1592 Ohms.
150[V]/1592[Ohm] =94[mA] ===>The amplifier will drive that load at an amplitude of 150V (300V ptp).

Fast shipping!!!
All amplifiers are available from stock. We ship within 1 working day after your credit card was approved. Shipping is by UPS. It takes up to 3 working days to ship by UPS to any country.

We accept VISA, MaterCard, American Express. Your credit card is charged only after we ship the order.
