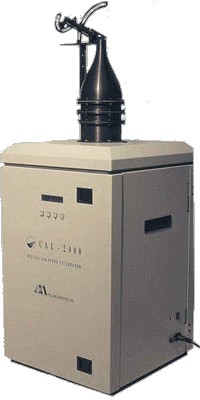

CAL-2000 DIGITAL AIR SPEED CALIBRATOR No JavaScript Site
The CAL-2000 is a high-precision digital air-speed calibration system designed especially for calibration of Hot-Wire and Hot-Film sensors. Its powerful motor generates Air velocity of 1 to 70 m/sec over varying Temperature, Humidity and Barometric pressure conditions. A high-speed microprocessor monitors all parameters continuously, and maintains a constant air velocity or a sweep between velocities at a known rate, according to user's request via RS-232. The user may also send a requested motor velocity or read each one of the four built-in environmental sensors in engineering units.
The CAL-2000 unit features a uniform flow rate, with low turbulence level. Its large output cross-section (1.95 sq. Inches) allows calibration of almost any standard sensor. The probe angles can be adjusted easily by two manual controls.
The CAL-2000 is a complete stand-alone system. It does not require any pressure inlets or external sources for generating the requested air speed. Its "Micronel" filter provides clean air flow without any dust or moisture particles which might attach to the sensor and change its calibration curve. The flow range configuration is done by entering a plate to a slot inside the noise filter section.
Stand-Alone
System.Turn-key System.RS-232 Serial Interface.High Accuracy to 0.5% of Reading.Velocity Controller maintains
highly stable Air Velocity.
Environmental monitoring: - Barometric pressure,
- Humidity,
- Differential pressure,
- Temperature.
Calibration curve (with LDA)
Supplied with each system. Calibration
of hot-wire and hot-film sensors.In-situ calibration.The
CAL-2000 system is supplied with a
setup
and control software for PC compatible computers. All system setups can
be controlled remotely via that software. The system also interfaces with
"LIN-FLOW" software for calibration of Hot-Wire sensors with the
AN-2000 software. The system may also be operated from any computer (PC,
Vax, Macintosh, Sun etc.) which contains
a serial port (RS-232C standard), by
sending simple ASCII commands.
Flow
Rate: 1 to 70 m/sec.
Accuracy: 0.5% of reading.
Temperature range: 0 to 50 deg.
C.
Humidity: 0 - 90% RH
Power Requirement: 230 Vac ±10%
(115V models available).
Power consumption: 650W at full
speed.
Weight:69.5 Kg.
