AFL-8500
High Speed Analog/Digital Fiber Optic Link

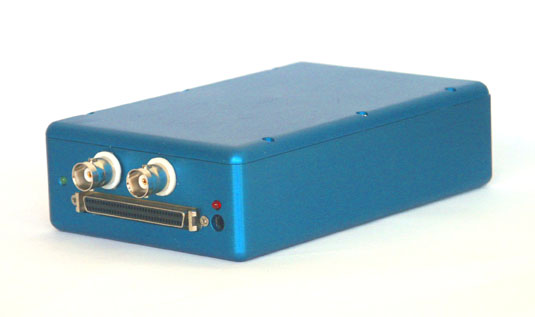

AFL-8500



The AFL-8500 is a high speed, high bandwidth fiber optic link. The AFL-8500 system can transfer up to 2 analog signals + 32 digital signals to each direction. The system is using a 1.25GHz. optical link for ranges of up to 40Km. Each signal is sampled at a very high sampling rate at 16 bit resolution providing the user a tool for transmitting analog and digital signals with high accuracy and a very low delay.

All of the analog and digital signals are sampled simultaneously inside the AFL-8500 High speed fiber optic link at a minimum sampling rate of 10 MHz. Digital units (with no analog I/O) can sample at up to 60 MHz. per channel.

AFL-8500 model Analog
Channels
Digital
I/O lines
Fiber
Range

Analog
Bandwidth

Uni / Bi -
Directional
Sampling
Rate
Fiber
Type
Comments
AFL-8500 A 2 D32

2+2

32+32

<40Km.

DC-3MHz

BI

20MHz.

SM

OBSOLETE

AFL-8500 A1 D32.

1+1

32+32

<40Km.

DC-6MHz

BI

40MHz.

SM

OBSOLETE

AFL-8500 A16 D32.

16+16

32+32

<40Km.

DC-80 KHz

BI

600KHz.

SM

OBSOLETE

AFL-8500 D32

N/A

32+32

<40Km.

N/A

BI

30MHz.

SM

TTL I/O

AFL-8500 D16
N/A

16+16

<40Km.
N/A
BI
40MHz..
SM

TTL I/O

AFL-8500 D8

N/A

8+8

<40Km.

N/A

BI

60 MHz.

SM

TTL I/O

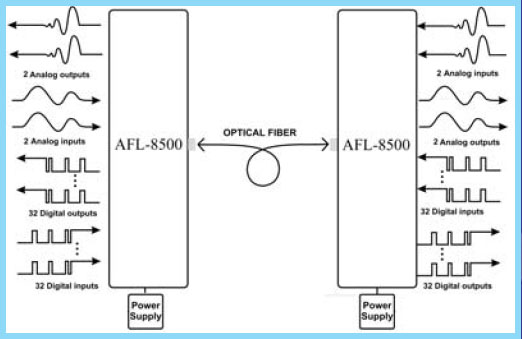

AFL8500block

Specifications:
Analog inputs are not available any more.
Sampling method: True Simultaneous Sampling.
Digital I/O Signals may be combined with RS-232/RS485 drivers or high current relay (dry contacts).
Optical fiber:
Single mode, 9/125 micron (SMF28 compatible)
Range: 10Km standard, up to 60 Km. optional.
Power Supply: 10-14V@1.5A max.

The AFL-8500 system is relatively small. It was designed for applications where small space and low weight are essential.

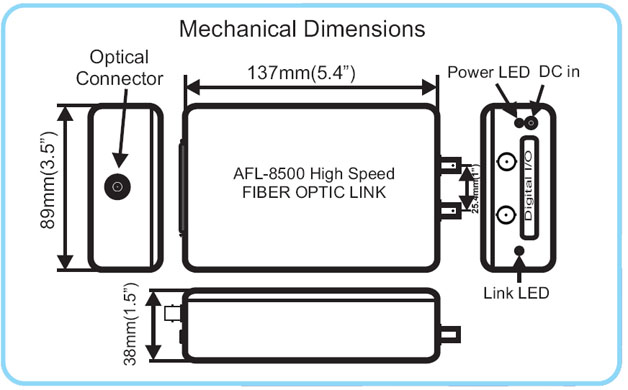

AFL8500mechanical

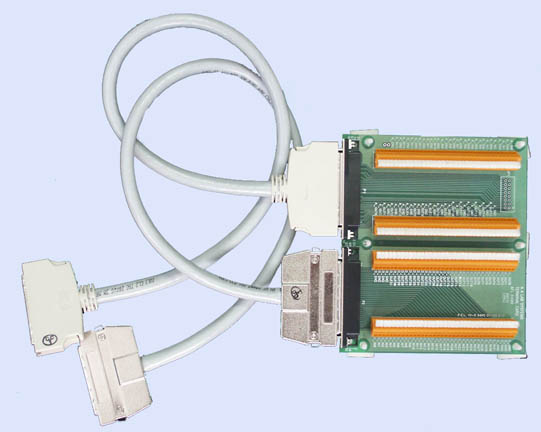

Didital I/O Board

IOboard

Relay/RS232 I/O Board

Relay_board

Download Datasheet PDF


For more information about other Analog/Digital fiber optic links click here.
